Beschrijving

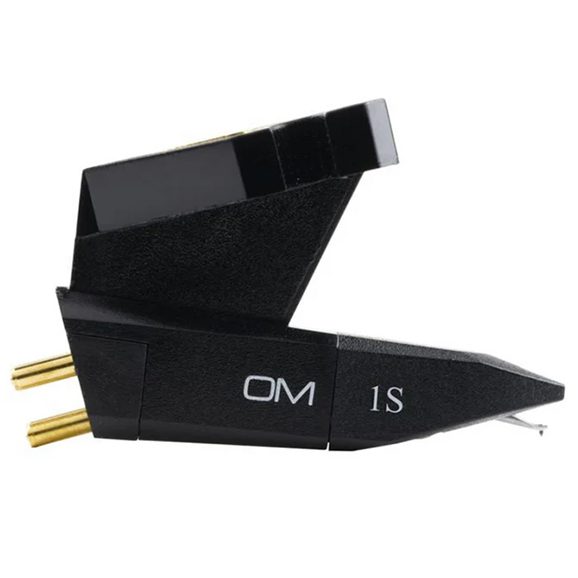

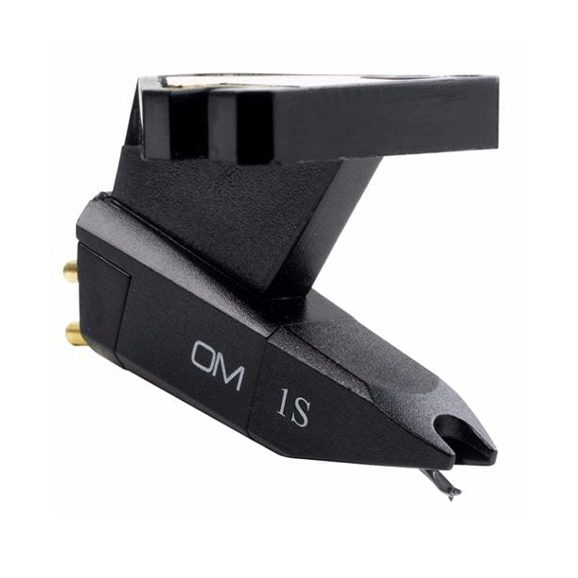

Om1S
Instapmodel met vervangbare Getipt Sferisch diamand
Output voltage at 1000 Hz, 5cm/sec. – 4,5 mV
Channel balance at 1 kHz – 2 dB
Channel separation at 1 kHz – 20 dB
Channel separation at 15 kHz – 12 dB
Frequency range at – 3dB – 20-20.000 Hz
Frequency response – 20-22.000 Hz
Tracking ability at 315Hz at recommended tracking force *) – 60 µm
Compliance, dynamic, lateral – 20 µm/mN
Stylus type – Spherical
Stylus tip radius – R 18 µm
*) Typical value
Tracking force range – 1,5-2,0 g (15-20 mN)
Tracking force, recommended – 1,75 g (17,5 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 750 Ohm
Internal inductance – 450 mH
Recommended load resistance – 47 kOhm
Recommended load capacitance – 200-500 pF
Cartridge colour, body/stylus – Black/Black
Cartridge weight – 5 g
Website: Ortofon
