Precisie digitale weegschaal om de naalddruk te meten

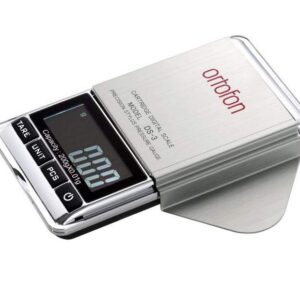

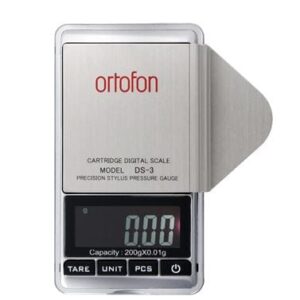

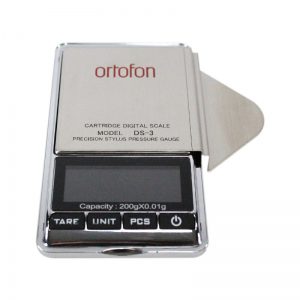

DS-3 is a new lightweight compact digital stylus pressure gauge model. The DS-3 is a miniature ultra precision non-magnetic instrument that tunes your tonearm to the highest possible degree. The DS-3 scale is factory pre-calibrated for high accuracy measurements with the tolerance of +/-0.01 g.
Technical data and precautions
Sensitivity – 0.01g
Operational weight range – 0.1g to 200g
Battery – 2 × AAA
Size – (L) 120mm × (W) 60mm × (H) 17mm
Weight – 70g
LCD screen with back lighting
Auto off function
Protect the device against high temperatures, dust and humidity
Carefully lower the measurement object on the measurement plate
Operating temperature range +10⁰ – +30⁰C
Do not place objects weighting more than 200 g on the measurement plate
Do not place the device on an uneven surface, it may result in not accurate measurements
Website: Ortofon
