Beschrijving

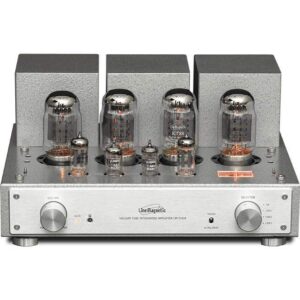

Line Magnetic LM-216IA
De Line Magnetic LM-216IA is een geïntegreerde TUBE AMPLIFIER. Met de KT88 buis in push pull opstelling kan deze versterker de meest uiteenlopende versterkers aansturen, en hoe ! Stil, zuiver, ruimte en detail, alles is aan boord.
Line Magnetic LM-216IA
Bij A Tube High Fidelity vind u alle geïntegreerde buizenversterkers van Line Magnetic. Van het instapmodel de LM-211iA tot en met de Premium en ook vind u bij ons demonstratieklaar de LM-32DAC en voor de vinyl liefhebbers de fantastische LP-33Phono
Highlights LM-216IA
– Triode/ultra-linear modes
– Point-to-point wiring
– High quality components
TUBES
Input stage: 2x 12AX7 et 2x 12BH7
Power stage: 4x KT88
Hand-made construction with the finest point-to-point wiring
Bias control is accessible on top of the amplifier panel with true ampere meter.
Analog Inputs: 4 line inputs Load impedance: 4/8Ω SoftStart and time-delay circuit. (30 seconds)
Specially designed EI transformer for power supply
Two EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied
Metal and removable tube guard cage
Infrared Remote control
Wij hebben de Line Magnetic LM216IA voor u demo klaar staan. U zult verteld staan van de capaciteiten van deze kleine krachtpatser
Maakt u gerust een afspraak met ons door op ons logo te klikken
Specifications
Class AB amplifier
2x22W RMS Triode and 2x38W RMS Ultra-linear
Tubes: 2x 12AX7, 2x 12BH7, 4x KT88
THD: 1% (1kHz)
Signal/Noise ratio: 87dB (Weighted A)
Frequency response: 10 à 50.000 Hz (-1.5 dB)
Sensitivity: 220 mV (Built-in Mode)
Input Impedance: 100kΩ
Load impedance for HP to connect: 4/8Ω
Connectors
4x Line Inputs RCA (pair)
2x Screw terminals compatible with banana plugs
Included Accessories
2x Fuses
1x Remote control
1x Detachable power cord
1x Manual
Tubes Basics Common Replacements
12AX7 12AX7EH, ECC83, E83CC, CV4004, ECC803, 5751
12BH7 12BH7EH
KT88 KT88EH, 6550EH, 6550, 6550A
Afmetingen (L x H x P) : 376 x 192 x 345 mm
Weight: 19.6 Kg
Finish: Silver
