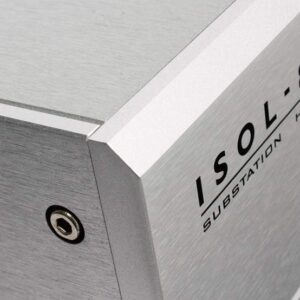

Isol-8 Substation HC
The Isol-8 SubStation HC (High current) complements the LC, providing 16 Amps continuously across its two outlets for high peak current loads such as amplification. A high capacity DC blocking Axis circuit is complemented by a massively constructed Transmodal filter.
Using proprietary custom wound components, kilos of OFC copper foil and premium capacitors to keep series resistance low, the SubStation HC effortlessly tackles the very thorny problem of effectively cleaning a high current power supply without compromising dynamic performance.
color: silver
Number of available outlets: 2
Type of outlets available: 13A UK, Schuko, 15A US
Power Input: Neutrik 20A powerCON (cable not supplied)
Dimensions: W: 232mm H: 135mm D: 420mm (excluding connectors)
Weight: 10.9
Construction: Aluminium chassis with Silver finish Aluminium alloy panels (Black optional)
Mains Voltage: 230VAC version for 220-240VAC 117VAC version for 100-127VAC
Maximum continuous Current: 16Amps across any one power outlet 16Amps across all outlets
Protection: Rear panel circuit breaker
Website: isol-8
