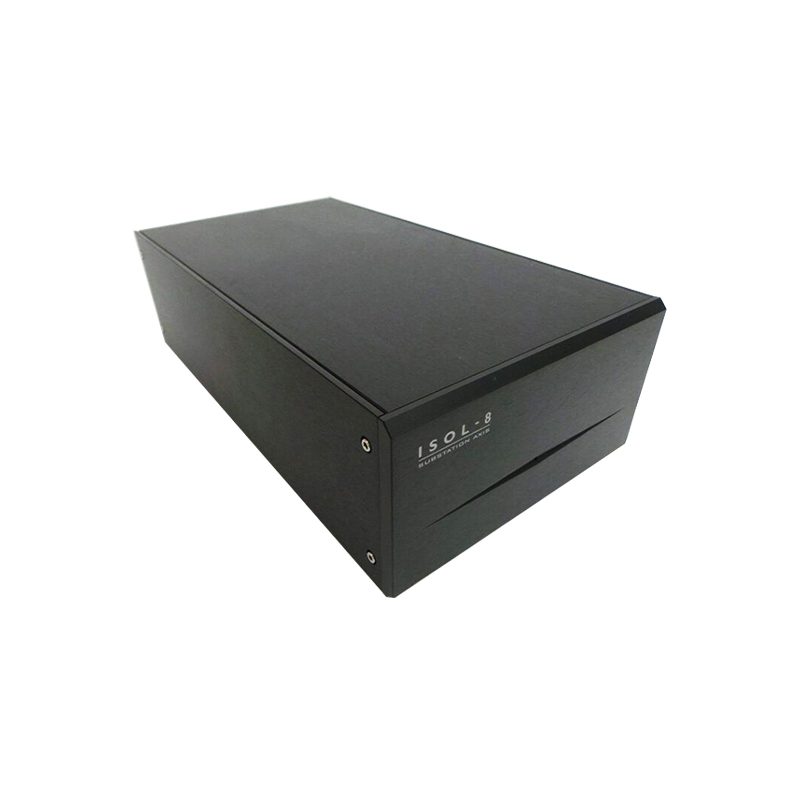

Isol-8 Substation Axis
The Isol-8 SubStation Axis provides a more economical third option with the considerable benefits of DC blocking, but without multistage filtering. Where the mains waveform is not perfectly symmetrical in energy content a DC component will be present, this partially saturates the power supply’s mains transformer.
This can lead to acoustic hum and reduced performance from connected equipment. A high current version of the acclaimed ISOL-8 Axis circuit blocks any DC on the incoming mains. Four outlets supply a continuous current capability of 16A across the unit with a suitable mains connection. The SubStation Axis is eminently suitable for lifting the performance of all high end system components.
Isol-8 Substation Axis
Color: Black
Number of available outlets: 4 Axis
Type of outlets available: 13A UK, Schuko, 15A US
Power Input: Neutrik 20A powerCON (cable not supplied)
Dimensions: W: 232mm H: 135mm D: 420mm (excluding connectors)
Weight: 4.8 Kg
Construction: Aluminium chassis with Silver finish
Aluminium alloy panels (Black optional)
Mains Voltage: 230VAC version for 220-240VAC
117VAC version for 100-127VAC
Maximum continuous Current: LC 8 Amps across any one power outlet LC 8 Amps across all outlets HC and Axis 16Amps across any one power outlet HC and Axis 16Amps across all outlets
Protection: Rear panel circuit breaker
Website: isol-8
