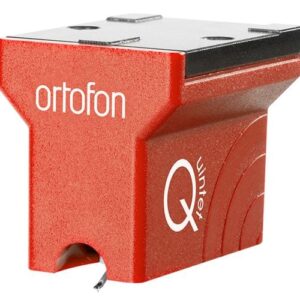

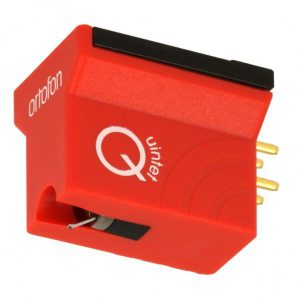

Quinted Red
Output voltage at 1 kHz 5 cm/sec – 0.5 mV
Channel balance – < 1.5 dB
Channel separation at 1 kHz - > 21 dB
Channel separation at 15 kHz – > 14 dB
Frequency range at -3 dB – 20 – 25.000Hz
Frequency response 20-20.000 Hz – +/-2.5 dB
Tracking ability at 315 Hz at recommended tracking force *) – 65 μm
Compliance, dynamic, lateral – 15 μm/mN
Stylus type – Elliptical
Stylus tip radius – r/R 8/18 μm
Tracking force range – 2.1-2.5 g (21-25 mN)
Tracking force recommended – 2.3 g (23 mN)
Tracking angle – 20º
Internal impedance, DC resistance – 7 Ohm
Recommended load impedance – >20 Ohm
Cartridge body material – ABS/Aluminium
Coil wire material – Copper
Cartridge colour – Red
Cartridge weight – 9 g
*) Typical value
