Beschrijving
Isol-8 MniSub Chroma 1080
De Isol8 Chroma is voor uw AV system ontworpen.
The MiniSub Chroma combines the architecture of the VMC1080 and the acclaimed MiniSub Wave to bring pure power to AV systems in one convenient package.

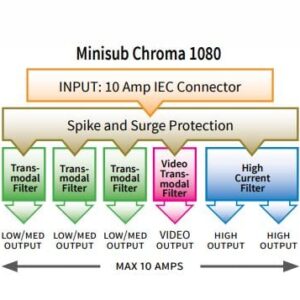

Video, low and high current loads all need different treatment to allow a quality AV system to operate at peak potential. The same separated filter topology found across our high performance and audiophile products forms the basis of the Chroma allowing each equipment type to deliver peak performance.
One outlet has a special broadband Transmodal filter, implemented with custom magnetics, designed to sink noise from your video display’s hard working power supply. This can improve picture detail and reduce motion artifacts.
For other low current loads, such as source and video playback components, there are three other outlets each with a separate filter network.
umber of available outlets: 6 (1 video display. 3 low/med current. 2 high current)
Type of outlets available: 13A British chassis sockets, European Schuko sockets, 15A US sockets
Standard Mains Inlet: 10A IEC fused at 10 Amps (cable not supplied)
Dimensions: 444 x 85 x 305mm (W x H x D) excluding connectors
Product Weight: 7.5Kg
Construction: Steel chassis with black finish. Silver Aluminium front panel (Black optional)
Mains Voltage: 230VAC version for 220-240VAC 117VAC version for 100-127VAC
Maximum Continuous Current: 4 Amps for video display power outlet 6 Amps any one low/med power outlet 6 Amps across all low/med power outlets 10 Amps any one high power outlet 10 Amps across all outlets
